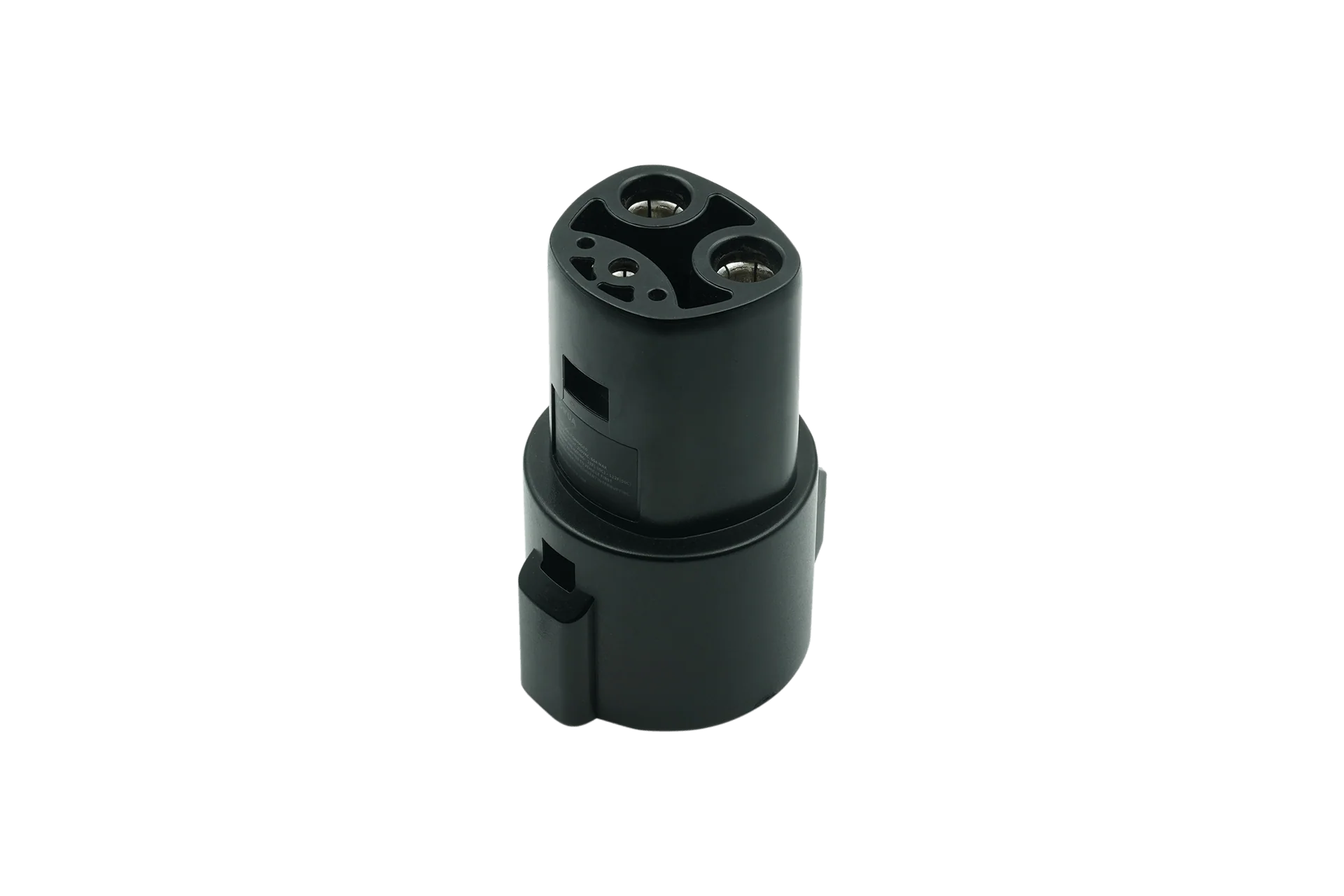

J1772 to TPC(NACS) Adapter
Description
Connector Durability
Pass mechanical life (No-load plug > 10,000 cycles) and insertion force < 80N
Electrical Performance
Rated Operating Current: 60A (MAX)
Operating Voltage : 250V (MAX) AC
Excellent protection performance
Housing: Flame-retardant Thermoplastic (flammability standard UL94 V-0)
Spec
| Rated Current | 60A (MAX) |
| Rated Voltage | 250V (MAX) AC |
| Insertion Force |
SAE < 80N; TPC < 100N |
| Connector Durability | No-load plug/unplug > 10,000 cycles |
| Flame Retardant Grade | UL94 V-0 |
| Protection Grade | IP54 |
| Terminal Temperature Rise | 50K |
| Ambient Temperature | -30°C to + 50°C |
| Charging Standards Compatibility |
SAE J1772:2010 |
Description
Connector Durability
Pass mechanical life (No-load plug > 10,000 cycles) and insertion force < 80N
Electrical Performance
Rated Operating Current: 60A (MAX)
Operating Voltage : 250V (MAX) AC
Excellent protection performance
Housing: Flame-retardant Thermoplastic (flammability standard UL94 V-0)
Spec
| Rated Current | 60A (MAX) |
| Rated Voltage | 250V (MAX) AC |
| Insertion Force |
SAE < 80N; TPC < 100N |
| Connector Durability | No-load plug/unplug > 10,000 cycles |
| Flame Retardant Grade | UL94 V-0 |
| Protection Grade | IP54 |
| Terminal Temperature Rise | 50K |
| Ambient Temperature | -30°C to + 50°C |
| Charging Standards Compatibility |
SAE J1772:2010 |
Original: $49.95
-70%$49.95
$14.98Description
